DataTube2 considers its own two CSV formats for temporal data:

• The synchronous temporal format is when all data attributes (i.e., variables) were recorded at the same time steps and with the same temporal difference between time steps. Hence, it is a matrix, like in this example:

If you use the synchronous format, be sure that the two above conditions are met.

• The asynchronous temporal format considers that data attributes were recorded at any time and independently. This is an “event” type representation, like in this example:

This array does not need to be sorted.

To begin, let us remind you that the differences between the French CSV format and the International CSV format are the following:

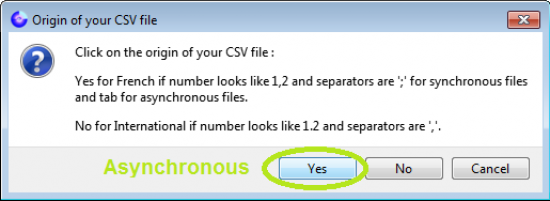

The DataTube2 synchronous format supports both encodings. To open a synchronous file, please start with: and then specify the French/International encoding by answering “Yes” or “No” in the following window, which is diplayed when you open a file:

The asynchronous format in DataTube2 uses TAB character as separator and “.” for decimals. To open an asynchronous file, please select:

and then:

Please not that there are still some bugs with the asynchronous file format. When reading a file, the local normalization has a bug that we'll correct as soon as possible.

Simple demo files with artificial data are provided in each format (synchronous or asynchronous). For the synchonous format, we give you some examples for each CSV encoding (French or international).

As an example, here are the first lines of file “DT2-synchronous-small-file-french.csv”, which is synchronous and with the French CSV encoding:

Time,VAR1,VAR2,VAR3,VAR4,VAR5,VAR6,VAR7,VAR8,VAR9,VAR10, …
timestamp,numeric,numeric,numeric,numeric,numeric,numeric,numeric,numeric,numeric,…
3;;;;;;;;;;…
4;;;;;;;;;;…
5;;;;;;;;;;…
6;;;;;;;;;;…
7;;;;;;;;;;…
8;;;;;;;;;;…
9;;;;;;;;;;…
10;;;;;;;;;;…
2003-09-28 00:00:00;-1000;15,1;81,1;35;14;213;0;6;25;14;…
2003-09-29 00:00:00;34;13;75;34,15;153;1;7;35;15;…
…


Here are the first lines of file “DT2-synchronous-small-file-international.csv”, which is synchronous and with the International CSV encoding:

Time,VAR1,VAR2,VAR3,VAR4,VAR5,VAR6,VAR7,VAR8,VAR9,VAR10, …
timestamp,numeric,numeric,numeric,numeric,numeric,numeric,numeric,numeric,numeric,…
3,,,,,,,,,,…
4,,,,,,,,,,…
5,,,,,,,,,,…
6,,,,,,,,,,…
7,,,,,,,,,,…
8,,,,,,,,,,…
9,,,,,,,,,,…
10,,,,,,,,,…
2003-09-28 00:00:00,-1000,15.1,81.1,35,14,213,0,6,25,14,…
2003-09-29 00:00:00,34,13,75,34,15,153,1,7,35,15,…
…


Finally, here is a sample of file “???”, which is asynchronous with TAB separators:

VAR1 2006-01-01 00:00:01 0.1
VAR1 2006-01-02 00:00:12 1.0
VAR1 2006-01-03 00:00:00 20
VAR1 2006-01-04 00:00:00 30
VAR1 2006-01-05 00:00:00 40
VAR2 2006-05-05 00:00:00 124
VAR2 2006-05-06 00:00:00 125
VAR2 2006-05-07 00:00:00 126
VAR2 2006-05-08 00:00:00 127
VAR2 2006-05-09 00:00:00 128
VAR2 2006-05-10 00:00:00 129
VAR1 2006-01-06 00:00:00 50
VAR1 2006-01-07 00:00:00 60
VAR1 2006-02-01 00:00:00 310
…


To encore your own data in a CSV file:

• Select the format to use, i.e., either synchronous or asynchronous (see explanation above),
• Study the examples provided with DataTube2 (see the Data directory),
• Give names to the variables,
• To represent time values :
  • the GMT format is yyyy-mm-dd hh:mm:ss
  • yyyy must be greater than 1970 (this is due to the EPOCH format, we'll try to improve this in future releases),
  • DataTube2 can use GMT or EPOCH (but yet, please use GMT, we need additional testing for EPOCH format),
• To represent data values:
  • for synchronous format (see the discussion above), use either the French CSV format (like this “;3,1415;”) or the International CSV format (like this “,3.1415,”),
  • for asynchronous format, use TAB for separators and “.” for decimals,
